Tech Specs

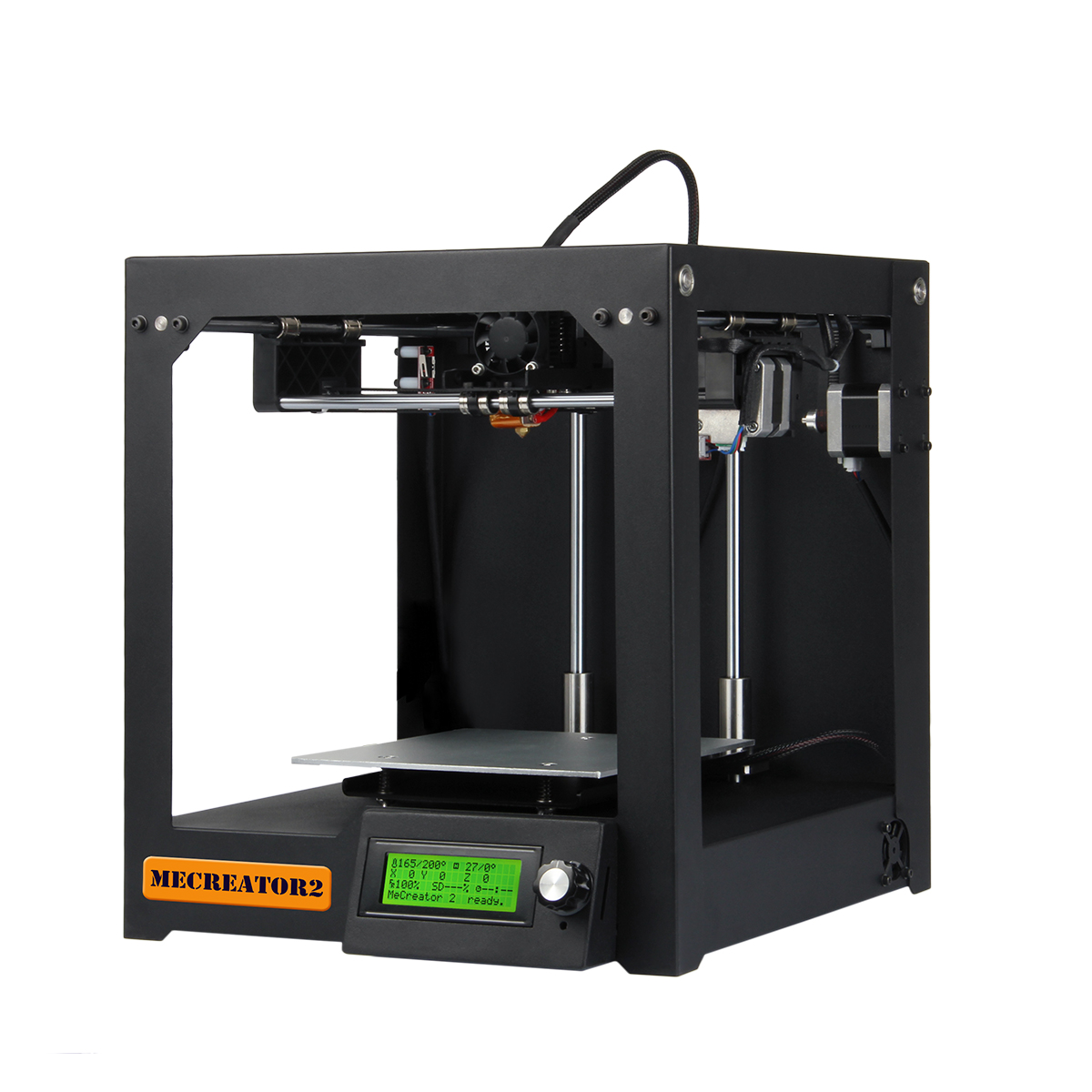

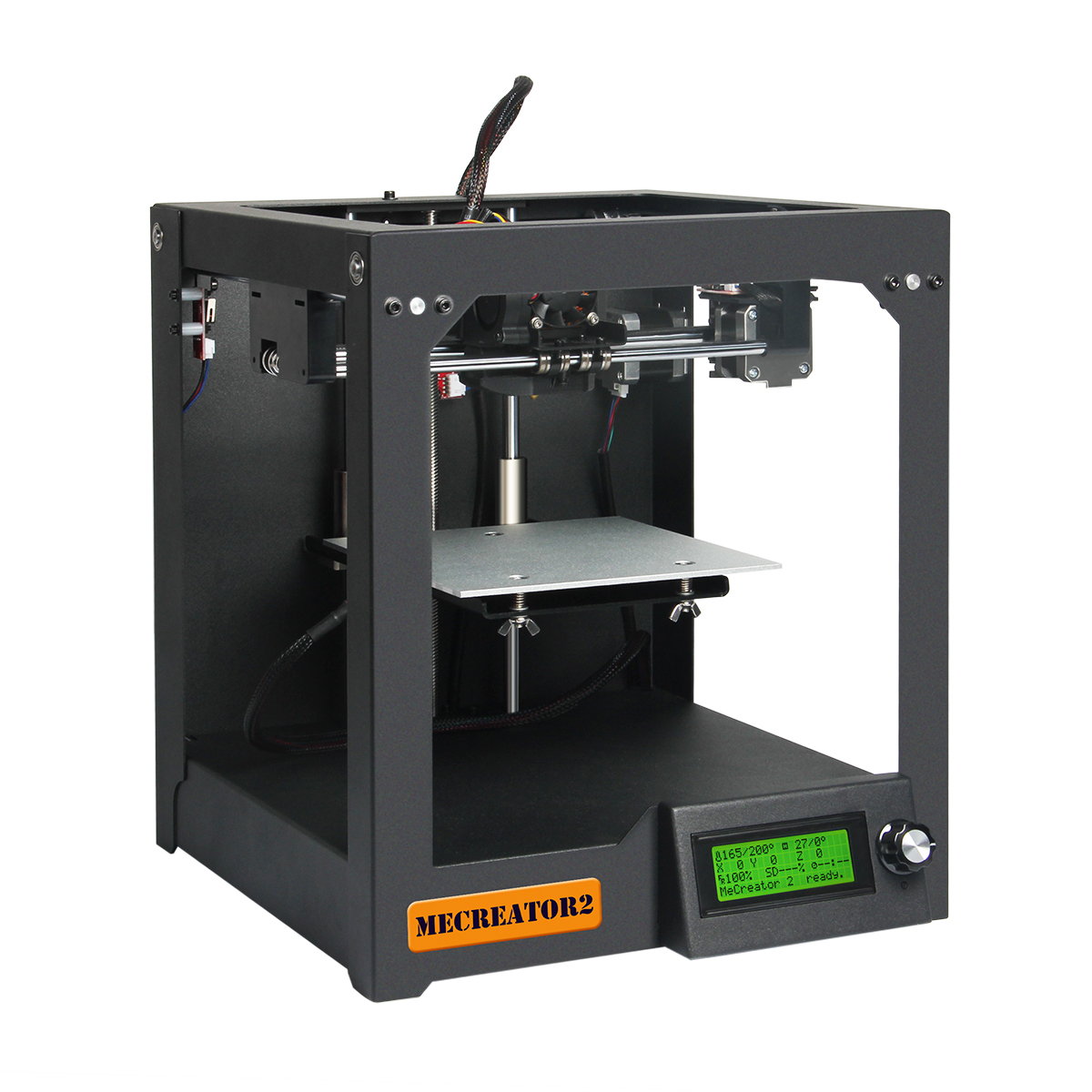

MeCreator 2 is our new desktop 3D printer with half-opened and box-type design and 160x160x160mm building volume. The control board and power supply unit are hidden in the bottom of the printer compact and space efficient providing stable support for printing as well as protection for you. The upgraded hardware and optimized firmware bring you excellent printing effect. The printing precision is up to 0.05mm and the positioning precision is up to 0.05mm for X/Y axis and 0.02mm for Z axis.

Printing Specifications:
Print technology: FDM
Build volume: 160x160x160mm
Printing precision：0.05mm
Positioning precision: X/Y：0.05mm. Z：0.02mm
Print Speed: 60-80mm/s
Filament diameter: 1.75mm
Nozzle diameter: 0.4mm
Filament type: ABS/PLA

Software:
Operating system: Windows/Mac/Linux
Control software: GT-Host Repetier-Host Printrun Cura
File format: .STL 3ds obj amf dae G-code

Temperature:
Max heated bed temperature: About 110 °C
Max extruder temperature: About 240°C

Electrical:
Power supply:
Input: 110V/220V 360W
Output：DC12V/15A
Control Board: GT2560B
Connectivity: USB SD card (support stand-alone printing)

Mechanical:
Chasis: metal sheet
Build Platform: Aluminum alloy plate+ heatbed
XYZ Rods: Wear-resistant stainless steel and lead screw (Z axis)
Stepper Motors: 1.8°step angle with 1/16 micro-stepping
Physical structure: Reprap

Physical Dimensions and Weight:
Machine Dimension: 320x320x360 mm
Shipping box Dimension: 460x460x410mm
Machine Net weight: 9.05kg
Machine shipping weight: 17.5kg

Package list

1 x GIANTARM Mecreator 2
1 x 3 meter starter filament
